חיבורי מחשב
|
4
|
חיבור
|
Hotkey, Pushbutton, OSD, Mouse
|
חיבורים
|

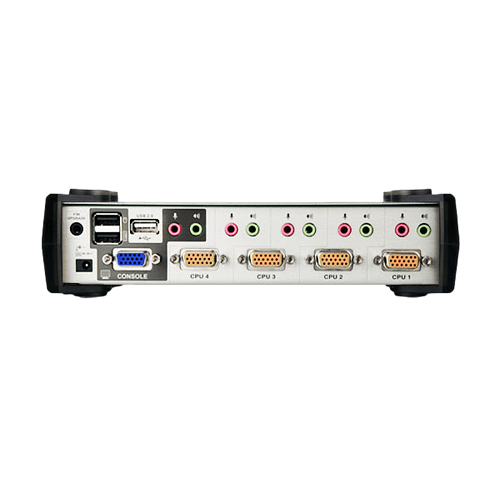

Console Ports 2 x USB Type A Female (Black)
1 x HDB-15 Female (Blue)
2 x 3.5mm Audio Jack Female (Green)
2 x 3.5mm Audio Jack Female (Pink)
KVM Ports 4 x SPHD-15 Female (Yellow)
4 x 3.5mm Audio Jack Female (Green)
4 x 3.5mm Audio Jack Female (Pink)
Firmware Upgrade 1 x 4-conductor 3.5mm Jack (Black)
Power 1 x DC Jack
USB Hub 2 x USB Type A Female (White)
|
Switches
|
Selected 4 x Pushbutton
|
LEDs
|
Online / Selected 4 (Orange)
USB Link 4 (Green)
|
Emulation
|
Keyboard / Mouse PS/2; USB
|
ווידאו
|
2048 x 1536 @ 60Hz; DDC2B
|
Scan Interval
|
1-255 Seconds (Default: 5 sec.)
|
Power Consumption
|
DC5V:1.02W:30BTU
|
סביבה
|
Operating Temperature 0-50°C
Storage Temperature -20-60°C
Humidity 0-80% RH, Non-condensing
|
מידות ומשקל
|
Housing Metal
Weight 0.78 kg ( 1.72 lb )
Dimensions (L x W x H) 21.00 x 8.80 x 5.55 cm
(8.27 x 3.46 x 2.19 in.)
|
הערה
|
For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
|
חבילה
|
1x 4-Port USB 2.0 KVMP™ Switch
2 x Custom KVM Cable (VGA, USB, Audio; 1.2m/4ft)
2 x Custom KVM Cable (VGA, USB, Audio; 1.8m/6ft)
2x OSD/Hotkey Stickers
1x Firmware Upgrade Cable
1x Power Adapter
1x User Instructions
|
